A multiplexer is one of the importance or ‘must’ component in the digital system generally. The multiplexer is basic combinational logic circuits where it will be selects one of several input signals and passes it on the output. The routing of the desired data input to the output is controlled by SELECT inputs. Figure 1 show the block diagrams of 4to1 Multiplexer, where 4 inputs, 2 selectors and 1 output.

Figure 1: A Block Diagram of Multiplexer 4to1

Table 1 shows the truth table of this 4to 1 multiplexer. Then the complete equation can be generate as

Z= ASel₁Sel₀ + BSel₁Sel₀ + CSel₁Sel₀ + DSel₁Sel₀

Table 1: Truth Table for Multiplexer

In this post, I will show you a few type of Verilog code to represent a multiplexer especially in my tutorial here, multiplexer 4to1.

Boolean Equation based Modelling

On this modelling, the output signals are specified in terms of input signal transformation based on Boolean equations. This modelling style allows a digital system to be designed in terms of its function. Let’s look at Figure 2 shows a Verilog code to implement this example of Multiplexer 4to1.

Figure 2: A Combinational Logic of Multiplexer 4to1 Verilog Code

Case Statement

The Verilog case statement is similar to its counterpart in other languages. It searches from top to bottom to find a match between the case expression and a case item. The case statement executes the statements associated with the first match found, and then does not consider any remaining possibilities. Figure 3 shows how the Multiplexer 4to1 can be write in this case statement style.

Figure 3: A Multiplexer based circuit using case statement

Conditional Operator

The condition expression using the conditional operator, denoted by “?:” symbol. The expression

“ a? b:c ” read as: “ if a is true then the result of the expression is b else the result is c”

In Figure 4 shows example how implementation of Multiplexer 2to1 using this conditional operator.

Figure 4: Modelling a Multiplexer 2to1 with conditional operator

Then if you understand behaviour in Figure 4, now you can construct Multiplexer 4to1 using same method as shown in Figure 5a using structural modelling and purely conditional operator in Figure 5b.

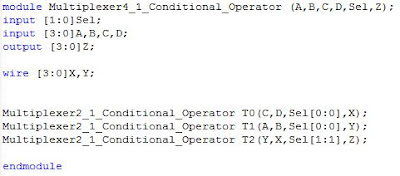

Figure 5a : Structural Modelling

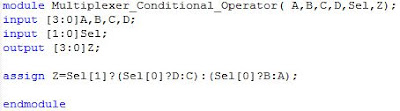

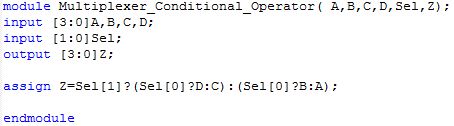

Figure 5b : Conditional Operator

Now you know how to construct 8to1 Multiplexer, right?

If-then-else statement

The conditional IF statement executes a statement if a condition is true. There are two other variants available: if-else and if-else-if statement.

Figure 6 shows the implementation of multiplexer 4to1 using if-else-if statement.

Figure 6: A Multiplexer 4to1 using if-else-if statement

Performance

Now, come in my mind, what about the performance for each different type of multiplexer above? Which type of style of Verilog should I apply? I believe it could be significant performance should be found. I’m not going to do some evaluation here, but based on RTL Viewer from QuartusII Tool may indicate something that needs to look further.

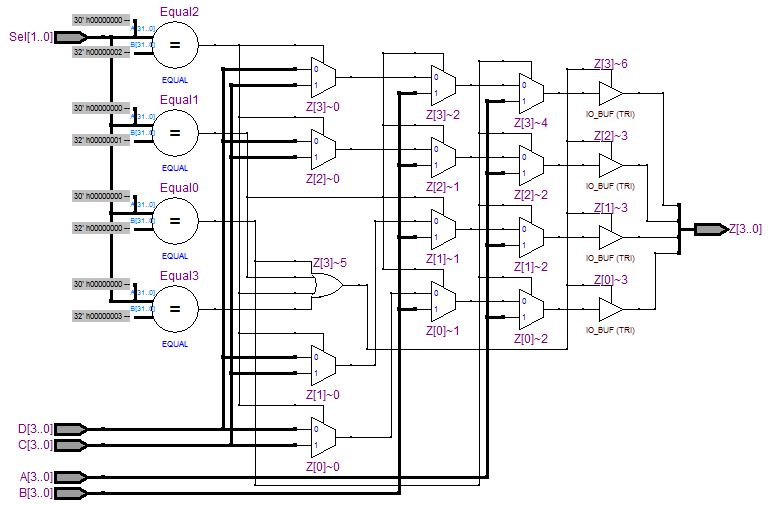

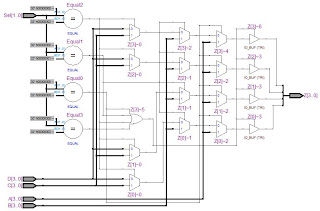

Let see in Figure 7, Figure 8, Figure 9 and Figure 10 shows RTL Viewer for Combinational Logic, Case Statement, Conditional Operator and If-then-else statement respectively. Probably you may some idea. Please post your comment regarding on this issue. Thank you again.
